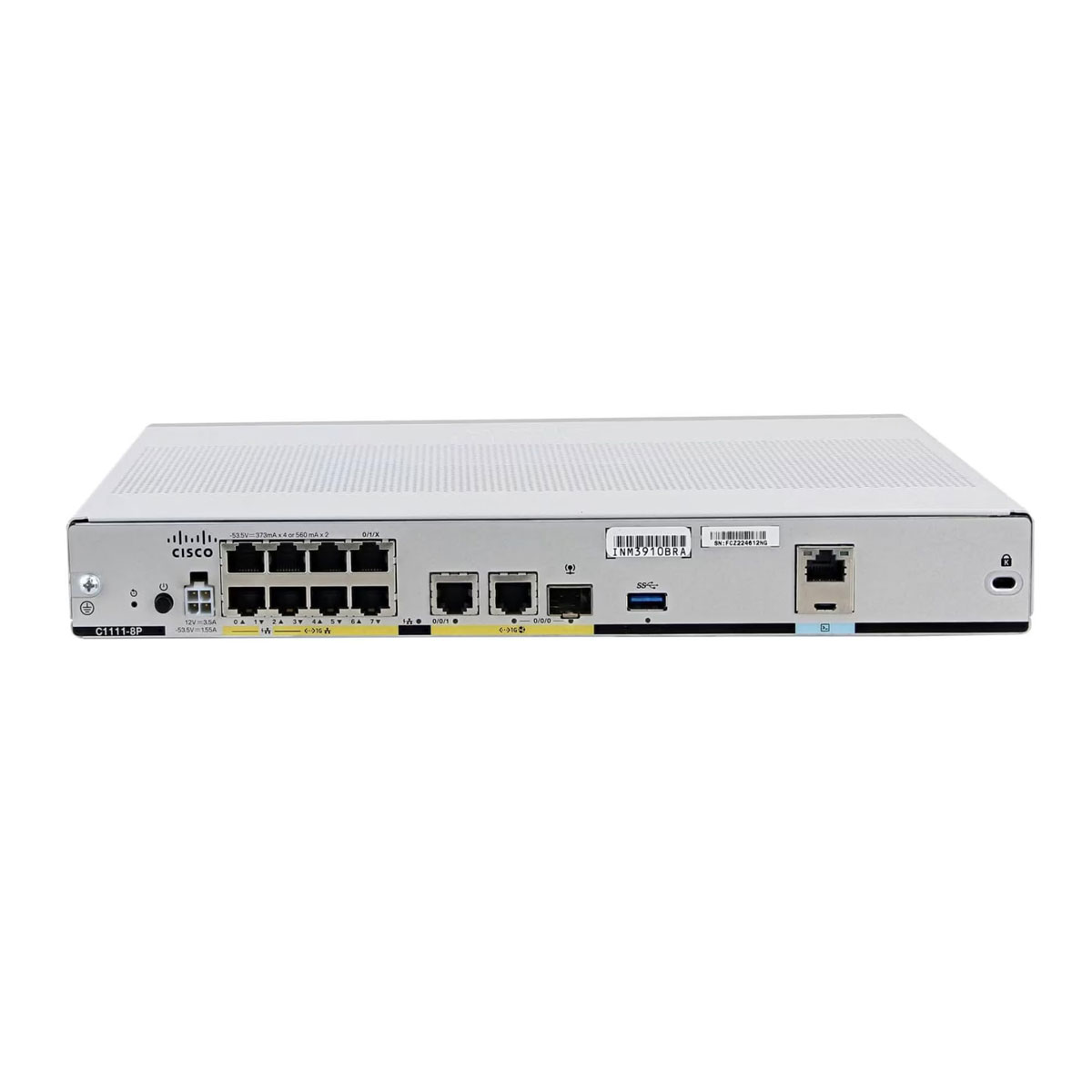

Cisco C1111-8P ISR 1100 8 Ports Dual GE WAN Ethernet Router

Stok kodu: Cisco C1111-8P Kategoriler: Profesyonel Ağ Ürünleri Etiketler: Cisco C1111-8P, Cisco Router

C1111-8P Specification

C1111-8P Specifications
Dimensions (H x W x D)	1.75 x 12.70 x 9.015 in.
Weight	4.37 lb. (1.98 kg)
Maximum power consumption (excluding external PS loss)	18W
External power supply	● AC input voltage: Universal 100 to 240 VAC, 50 to 60 Hz ● Output voltage: 12 VDC ● Maximum output power: 66W ● Requires 150W power supply for optional PoE and PoE+ ● PoE output voltage of -53.5 VDC
Operating conditions	● Temperature: 0° to 40°C at sea level, 1°C/1000 ft derating from 40°C ● Altitude: 0 to 10,000 ft (0 to 3048 m) ● Humidity: 10% to 85% relative humidity (non-condensing)
Nonoperating conditions	● Temperature: -40° to +70°C (-40° to +158°F) ● Altitude: 0 to 15,000 ft (0 to 4572 m) ● Humidity: 5% to 95% relative humidity (non-condensing)
Wi-Fi domains	–
WAN	GE: 2
	DSL: NO
	LTE(CAT6): NO
USB port	802.11ac: NO
USB port	GE: 8
SD-WAN IPsec throughput (1400 bytes)	1889 Mbps
SD-WAN IPsec throughput (IMIX)	465 Mbps
SD-WAN overlay tunnels	200
IPv4 forwarding throughput (IMIX)	1673 Mbps
IPsec throughput (multi tunnel, IMIX)	468 Mbps
Number of IPsec IPv4 tunnels	100
lash/DRAM	4 GB
Number of ACLs per system	4K
Number of IPv4 ACEs per system	10K
Number of IPv4 routes	280K
Number of IPv6 routes	260K
Number of NAT sessions	100K
Number of VRFs	1K
